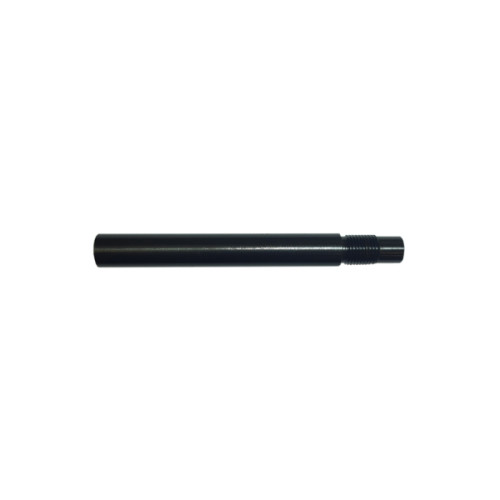

FX Impact Barrel Extension 100mm

Looking to upgrade from a 500mm FX Impact barrel liner to a 600mm, or 600mm to a 700mm, this is exactly what you need.

Scenario 1:
Remove the 1/2x20 UNF end cap from your factory barrel.
Notes with regards to FX Carbon Fiber Sleeve: If you intend you use a CF sleeve between the liner and the barrel, make sure the length matches the existing barrel (500mm) and not to the length of the upgrade to 600mm.
Install the 600mm liner into your shorter 500mm barrel.
Screw on the FX Impact Barrel Extension (100mm).
Finally attach the 1/2x20 UNF end cap from your factory barrel you had removed earlier.
You are done with the installation.

Scenario 2:
Remove the 1/2x20 UNF end cap from your factory barrel.
Notes with regards to FX Carbon Fiber Sleeve: If you intend to use a CF sleeve between the liner and the barrel, make sure the length matches the existing barrel (600mm) and not to the length of the upgrade to 700mm.
Install the 700mm liner into your shorter 600mm barrel.
Screw on the FX Impact Barrel Extension (100mm).
Finally attach the 1/2x20 UNF end cap from your factory barrel you had removed earlier.
You are done with the installation.
You now have an upgraded barrel to match the longer liner.

Bore ID of the Extension: 10mm

For 177, 22 and 25 cal Liners Only

Contact us if you need any customization and we shall be happy to get it done for you.
